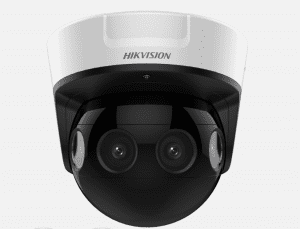

8 MP 180° PanoVu Network Camera

              • 180° splicing image to present all scenes that covered by the camera
    • Built-in heater, ultra-low temperature start up to -40℃
    • Water and dust resistant (IP67) and vandal proof (IK10)
    • Smart human density counting and public behaviors analysis to increase public area safety







  • Camera
  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Max. Resolution

    2.8 mm

    Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080

    Panorama mode: 3840 × 2160

    Original mode: 1920 × 1080

    6 mm

    Panorama+ePTZ mode: panorama channel: 2400 × 400; ePTZ channel: 1920 × 1080

    Panorama mode: 6480 × 1080

    Original mode: 1920 × 1080

  • Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
  • Shutter Time1/25 s to 1/100,000 s
  • Day & NightIR cut filter. Blue glass module to reduce ghost phenomenon.
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°
  • Lens
  • Lens TypeFixed focal lens, 2.8 mm and 6 mm optional, four lenses
  • Focal Length & FOV

    2.8 mm: horizontal FOV 180°, vertical FOV 90°

    6 mm: horizontal FOV 180°, vertical FOV 25°

  • Lens MountM16
  • FocusManual, semi-auto
  • ApertureF1.4
  • Illuminator
  • Supplement Light TypeIR, four IR LEDs
  • Supplement Light RangeUp to 20 m
  • IR Wavelength850 nm
  • Video
  • Main Stream

    2.8 mm

    Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)

    Panorama mode: 50Hz: 25fps (3840 × 2160 , 2560 × 1440 , 1920× 1080), 60Hz: 30fps (3840 × 2160 , 2560 × 1440 , 1920× 1080)

    Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (1920× 1080)

    6 mm

    Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (2400 × 400), 60Hz: 30fps (2400 × 400); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 720)

    Panorama mode: 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600), 60Hz: 30fps (6480 × 1080, 4800 × 800, 3600 × 600)

    Original mode: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080)

  • Sub-Stream

    2.8 mm

    Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640 × 360)

    6 mm

    Panorama mode: 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240), 60Hz: 30fps (2400 × 400, 1920 × 320, 1440 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 65 Mbps
  • H.264 TypeBaseline Profile/ Main Profile/ High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Target CroppingYes (only panorama mode supports)
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
  • Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200
  • Web BrowserIE8+
  • Image
  • Image SettingsRotate mode (only the original mode supports), saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
  • Interface
  • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet port
  • On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256GB
  • Audio

    1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;

    1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm2 inputs, 2 outputs (max. 24 VDC, 1A)
  • RS-4851 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Fiber Optical/NFC: FC interface, single mode, single fiber, Tx1310nm/1.25G, Rx1550nm/1.25G, up to 20 km
  • Event
  • Basic EventMotion detection (only panorama and original modes support), exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Deep Learning Function
  • People DensityYes (only panorama mode supports)
  • General
  • Power

    12 VDC, 1.6 A, max. 24 W, three-core terminal block

    PoE: 802.3at, 42.5 V to 57 V, 0.5 to 0.4 A

  • Dimension189.5 × 207.63 × 206.62 mm (7.46″ × 8.17″ × 8.13″)
  • Package Dimension340 × 261 × 293 mm (13.4″ × 10.3″ × 11.5″)
  • Approx. 3 kg (6.6 lb.)
  • With Package WeightApprox. 5 kg (11 lb.)
  • Storage Conditions-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
  • LanguageEnglish
  • General FunctionAnti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only original mode supports), password protection, watermark, IP address filter, pixel counter
  • HeaterYes
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);

    RCM (AS/NZS CISPR 32:2015);

    IC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);

    BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

  • Environment

    CE-ROHS (2011/65/EU);

    REACH (Regulation (EC) No 1907/2006);

    WEEE (2012/19/EU)

  • ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
